OFV Oil Tank Filter Valve

Home> Products>oil heating spares & accessories>OFV Oil Tank Filter Valve

OFV Oil Tank Filter Valve

For use on bottom take-off connections on steel or plastic domestic heating oil tanks.

The filter and isolating valve is positioned in the oil feed pipe, usually near the tank, running to the boiler.

This insures that the oil supply can quickly be turned off, for example, during boiler servicing.

The OFV is fitted with a nylon filter, this is important because even the smallest particle of dirt or rust can

permanently damage a boiler's oil pump and/or block the very fine oil atomising jet.


Features

Isolation ball valve

52 micron disposable nylon filter element

10mm copper compression fitting outlet

10mm copper pipe insert

1" male BSPT tank fitting adaptor

Roll of PTFE tape

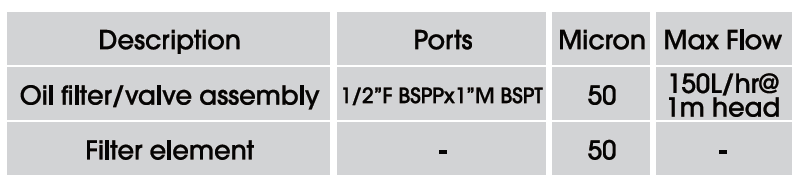

Specifications

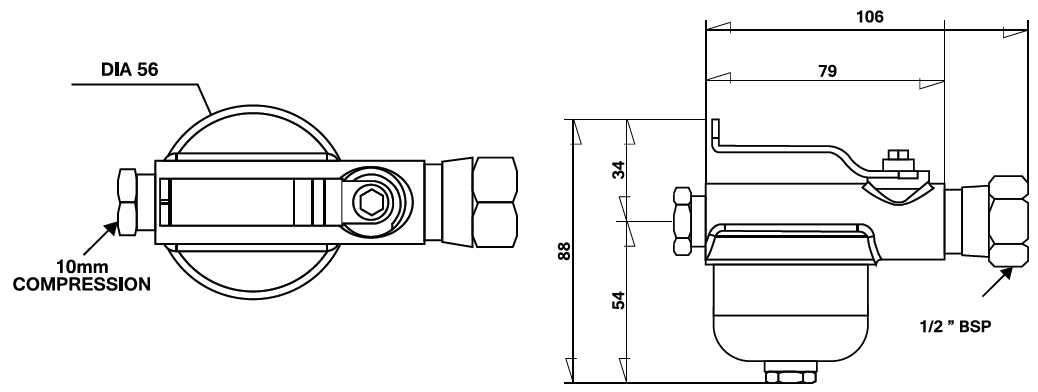

Product Dimensions

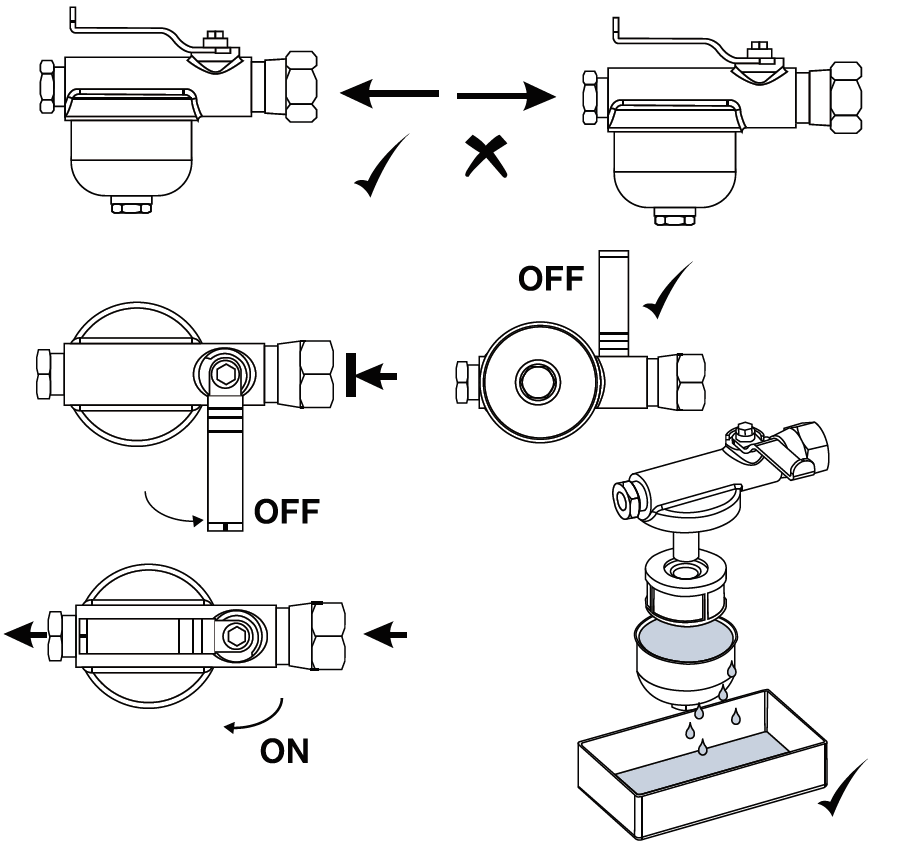

Installations (Electrical Wiring, Connections)
